| Business Type | Exporter, Supplier, Importer |
| Number Of Flower | Compact Fanless System |
| CPU Socket Type | LGA 1200 |
| Chipset | Intel W480E/H420E |
| Click to view more | |
Product Details
Operating Temperature
-10 ~ 60 °C
Input Power Range
9 ~ 36 VDC
Ethernet Ports
2 X GigaLAN
USB Ports
2 X USB 3.2 (Gen2), 6 X USB 3.2 (Gen1)
Serial Ports
2 X RS-232/422/485, 4 X RS232 (Optional)
Storage
1 X 2.5
Technology Support
Advantech I-Modules, FlexIO, IDoor

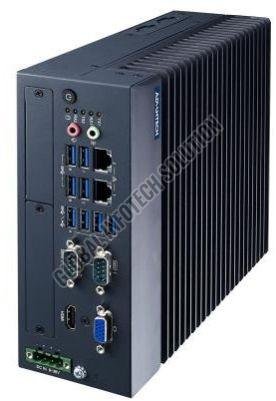

Compact Fanless System with 10th Gen Intel® Xeon®/Core™ i CPU Socket (LGA 1200)
- Intel® 10th Gen Xeon®/Core™ i CPU socket-type (LGA1200) with Intel® W480E/H420E chipset
- Wide operating temperature (-10 ~ 60 °C), 9 ~ 36 VDC input power range
- 2 x GigaLAN, 2 x USB 3.2 (Gen2) and 6 x USB 3.2 (Gen1)
- 2 x RS-232/422/485 and 4 x RS232 serial ports (Optional)
- 1 x 2.5" HDD/SSD, and 1 x mSATA
- Supports Advantech i-Modules, FlexIO and iDoor technology, flexible configure additional HDMI, DVI, Comport, DIO, Remote switch IO
- VGA and HDMI™ output (The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.)
- Microsoft Azure PnP, AWS IoT Greengrass, Ubuntu Certified
- RED Compliance
